Porous Sintered Metal Filter Tube SS 316L For Catalyst Recovery Chemical
| Lieu d'origine | CHINE |
|---|---|
| Nom de marque | CSTY |
| Certification | ISO 9001;2015 |
| Numéro de modèle | Solides solubles 316L |
| Quantité de commande min | 5-10pcs |
| Prix | USD56/pc |
| Détails d'emballage | Le film et le boîtier en bois, le carton peuvent être conçus selon les exigences du client. |
| Délai de livraison | 10-15 jours |
| Conditions de paiement | L / C, T / T, Western Union, MoneyGram, PayPal |
| Capacité d'approvisionnement | 200 pc / mois |
Contactez-moi pour des aperçus gratuits et des bons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Résistance à l'abrasion | Haut | Résistance à la température | ≤400℃ |
|---|---|---|---|
| Service d'échantillon | Fournissez l'échantillon pour l'essai | Pression maximale | 2.0Mpa |
| Matériel | SS 316L, Titanium, Inainel600, Monel400, Etxc. | autre service | Platium, IR, plat titanique de revêtement de RU |
| Traitement de surface | Polissage | Zone de filtration | 0.3-1.0m2 |
| Avantage | haute porosité et perméabilité | Taper | élément de filtre en titane |
| Résistance à la compression | ≥0,6 MPA | Cote de filtre | 0,5UM-50UM |
| Filtre des supports | Poudre de nickel | Vie professionnelle | Plus de 10 ans |
| Température | 0-200 ℃ |
Description de produit
Introduction
Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance, and heat dissipation, and can be repeatedly washed and used for many times.
Specifications
| Product name | SS 316L sintered tube |
| Material | Pure titanium/SS316L/Bronze |
| Size | OD20-80*WT2.5-3.0*L10-1200mm |
| Filter accuracy | 0.5-80microns |
| Connection | Customised according to customer requirements |
| Application | Sparging, Separation and filtration, Carbonisation, Liquid filtration, etc. |
Parameter
| Filter accuracy | Porosity | Penetrability |
Compression strength |
Temperature toleration |
Max working pressure |
| 0.5-50μm | 20-50% | 3-800m³/㎡hkpa | 2-3Mpa | 250℃ | 0.6Mpa |

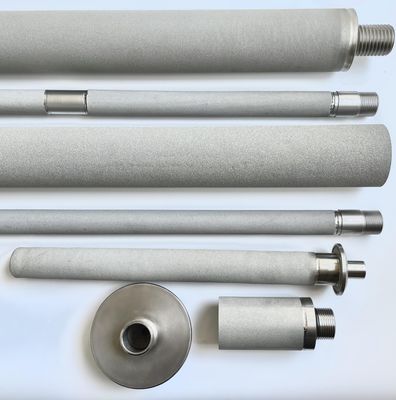

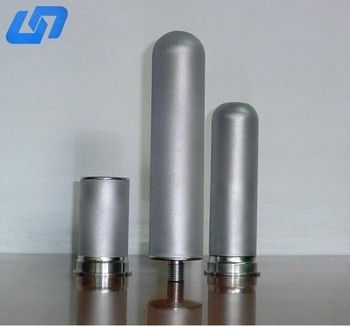

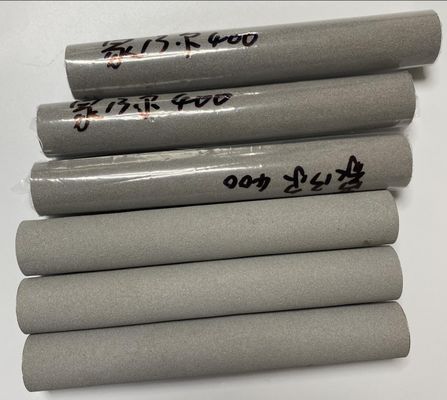

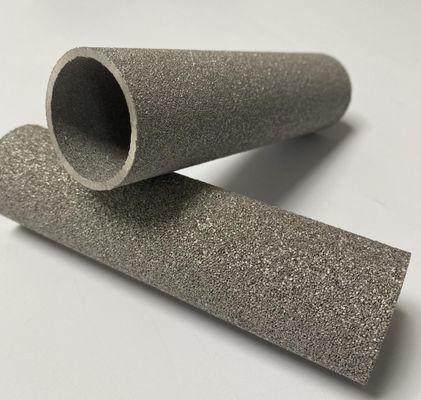

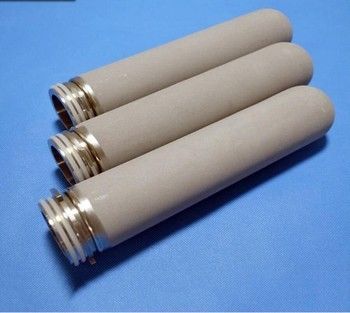

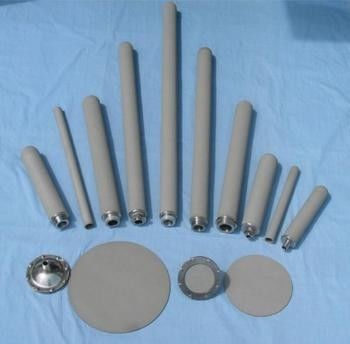

Product photo
Performance
Excellent mechanical properties, stable characteristics, uniform pore size distribution, good air permeability,
superior chemical stability, high-temperature resistance, acid and alkali resistance, fireproof and anti-static.
Application Environments
Suitable for use in environments containing nitric acid, sulphuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium,
liquid hydrogen, liquid nitrogen, hydrogen sulphide, acetylene, water vapour, hydrogen gas, coal gas,
carbon dioxide gas, etc. Widely employed in catalyst recovery, chemical processing,
beverage production, food processing, metallurgy, coarse and fine filtration of liquids;
dust and oil mist removal from various gases and vapours;
sound attenuation, flame retardancy, and gas buffering.
FRQ
Commercial CE SAA ROHS Certificate Outdoor IP65 Waterproof 20W 30W 50W 100W 200W 12V LED Flood Lights
Q1. Can I have a sample order for an LED light?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparation,8-10 working days for mass production.
Q3. Do you have any MOQ limit for LED light orders?
A: Low MOQ, 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How do I proceed with an order for LED lights?
A: First, let us know your requirements or application.
Secondly, we will quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for a formal order.
Fourthly, we arrange the production.
Q6. Is it OK to print my logo on an LED light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 5 5-year warranty on our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in a strict quality control system, and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new orders for small quantities. For defective batch products, we will repair them and resend them to you, or we can discuss the solution, including re-cal, according to the real situation.
