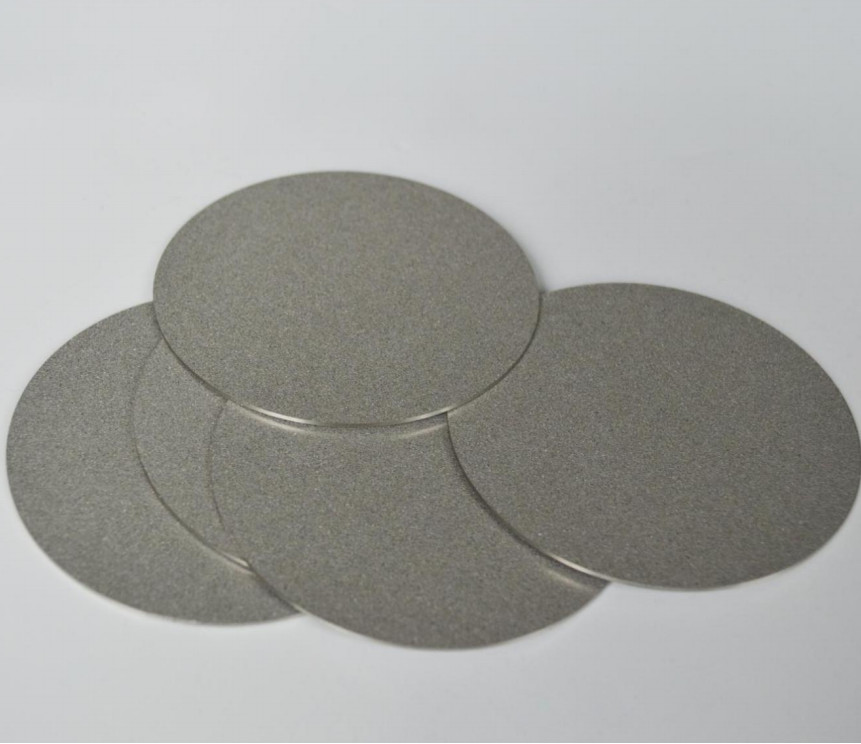

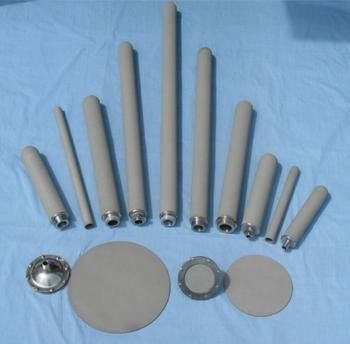

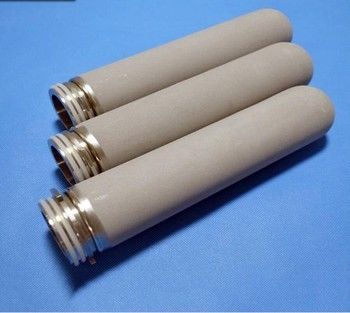

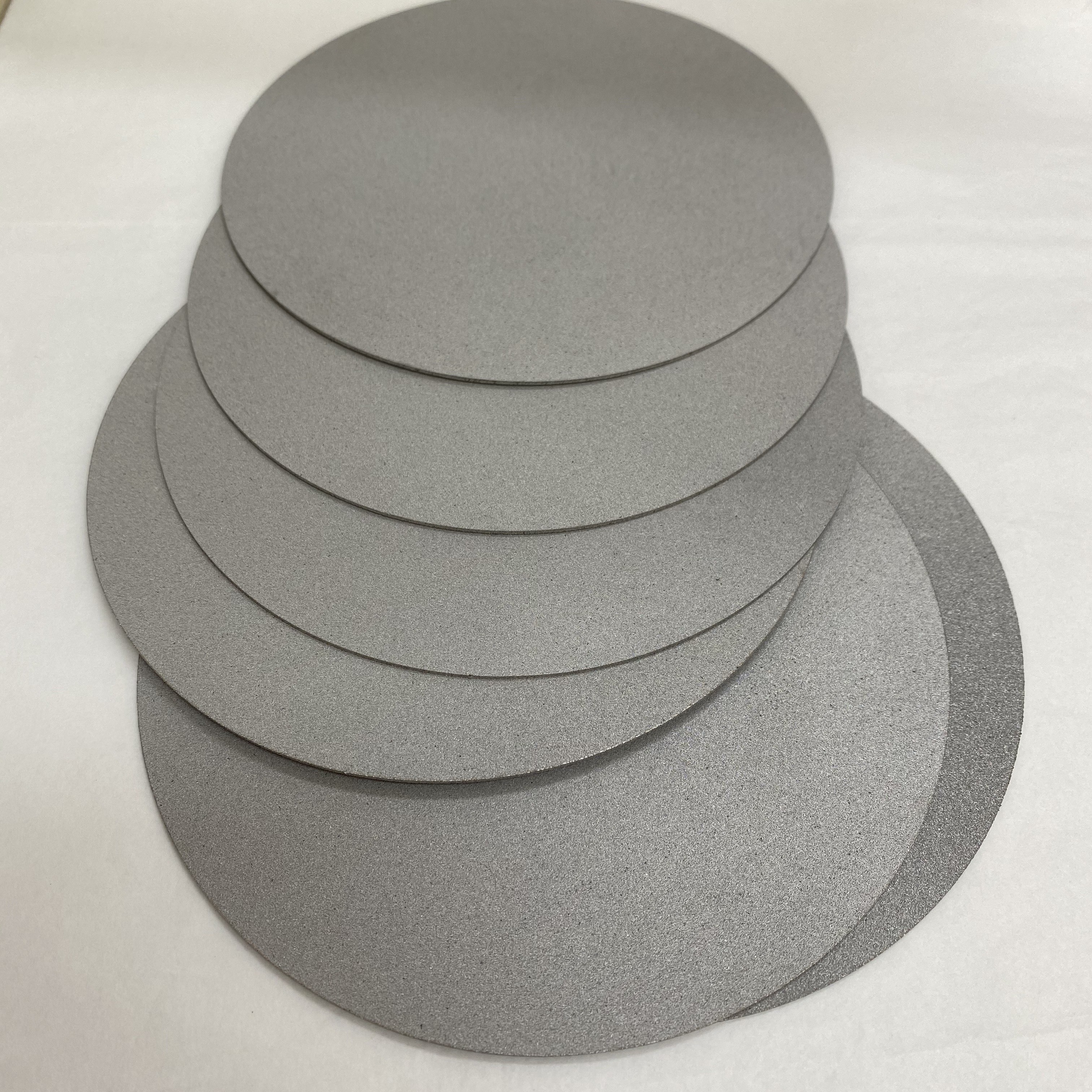

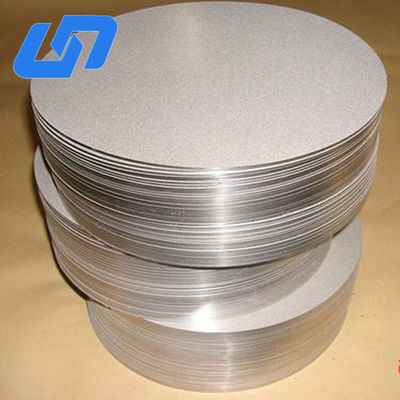

Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation

  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
  • Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
Lieu d'origine CHINE
Nom de marque CSTY
Certification GB/T19001-2016/ISO9001:2015
Numéro de modèle Solides solubles 316L
Quantité de commande min 10 kg
Prix $80.00 - $110.00/ Piece
Détails d'emballage Le film et le boîtier en bois, le carton peuvent être conçus selon les exigences du client.
Délai de livraison 15 ~ 20 jours de travail
Conditions de paiement L / C, T / T, Western Union, MoneyGram, PayPal
Capacité d'approvisionnement 5000 kg/kg par mois

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Précision de filtration 0,1 Résistance à l'abrasion Haut
caractéristiques Utilisé dans un environnement hautement corrosif Zone de filtration 0.3-1.0m2
Spécification 0.5um, 2um, 5um, 10um, Diamètre 50 à 1000 mm
Matériel Titane, SS 316L, Inconel600, etc. Service d'échantillon Fournissez l'échantillon pour l'essai
Taper Disque filtrant en métal, SS Standard ISO9000
Pression de travail 2-3Mpa Emballage Package d'exportation standard
Durée de vie 2-5 ans Pression maximale 2.0Mpa
Dimension Personnalisé
Mettre en évidence

Plaque filtrante poreuse Inconel600 sintrée

,

Plaque de filtration sintrée en titane

,

SS 316L plaque de séparation sintrée
Laisser un message
Description de produit

Introduction

Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance. They provide excellent permeability, precise pore size control, stable shape, high filtration accuracy, wear resistance, good mechanical strength, and excellent heat conduction and dissipation.

Moreover, sintered metal materials can withstand high temperatures, maintain their shape under stress, and be cleaned and reused multiple times, making them a durable and cost-effective filtration solution.

Specifications

Product Name Sintered Plate
Material Pure Titanium / SS316L / Bronze / Inconel 600
Size OD 20–80 mm × WT 2.5–3.0 mm × L 10–1200 mm
Filter Accuracy 0.5–80 µm
Connection Customized according to customer requirements
Applications Sparging, Separation and Filtration, Carbonation, Liquid Filtration, etc.

Technical Parameters

Filter Accuracy (µm) Porosity (%) Permeability (m³/m²·h·kPa) Compression Strength (MPa) Temperature Tolerance (°C) Max Working Pressure (MPa)
0.5–50 20–50 3–800 2–3 250 0.6

Applications

The sintered plate is widely used in industries including electronics, water treatment, food and beverage, biotechnology, chemicals, petrochemicals, metallurgy, and gas purification. It represents a new generation of filtration materials with broad development potential.

Typical applications include:

  1. Sparging

  2. Separation and Filtration

  3. Carbonation

  4. Liquid Filtration

  5. Catalyst Recovery

  6. Steam Filtration

  7. Slurry Oil Filtration

  8. Flame Arrestors

  9. Sound Silencing

  10. Fluid Distribution and Control

  11. Semiconductor Manufacturing

  12. Fuel Cell Stacks

  13. Coating Electrodes

  14. Damping and Shock Absorption

  15. Heat Exchange

  16. Bio-Implants

Properties

  1. Uniform pore size and stable pore structure with high separation efficiency

  2. High porosity, low filtration resistance, and excellent permeability

  3. Outstanding chemical stability and resistance to acids, alkalis, and oxidation

  4. Morphological stability—no particle shedding; compliant with food hygiene and pharmaceutical GMP standards

  5. Strong mechanical properties, low differential pressure, and large flow capacity

  6. Excellent anti-microbial characteristics, non-reactive with microorganisms

  7. Easy online regeneration, backwashing, and long service life

  8. Excellent biocompatibility for use in biological, food, pharmaceutical, and medical applications

  9. Effective electromagnetic shielding performance

  10. Strong damping and shock resistance
